Refrigerated Cabinet - DIONE

The DIONE range of refrigerated cabinets by OSCARTIELLE with reduced dimensions on ground, guarantee minimum visual impact due to the reduced external depth.

All models can be ducted and in the normal temperature version, offer a clear view from the shoulders that makes for excellent product visibility.

For full range download PDF brochure
 Dione Refrigerated Cabinets by Oscartielle

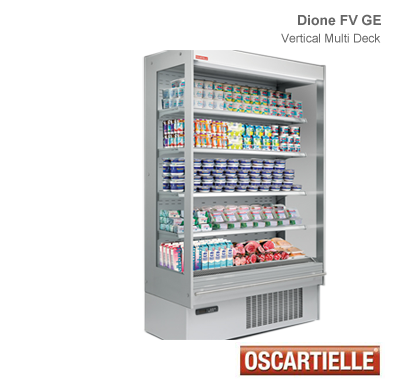

Dione FV GE
Remote Vertical Multi Deck
Refrigeration Unit
Working temperature
+5°C/+7°C
Normal Temperature Remote Condensing Unit Ventilated Refrigeration Off Cycle Defrost
Large Surface Medium Surface Speciality Store
Fruit and Vegetables


 Length With Ends  Horizontal Display Surface  Net Volume
 1290 mm  2,45 m²  469 dm³
 1915 mm  3,68 m²  703 dm³
 2540 mm  4,90 m²  937 dm³
 560 mm  1,22 m²  232 dm³
 980 mm  1,84 m²  351 dm³

 Dione Refrigerated Cabinets by Oscartielle

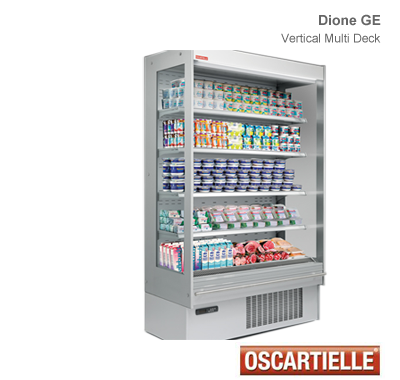

Dione GE
Remote Vertical Multi Deck
Refrigeration Unit
Working temperature
0°C/+2°C
Normal Temperature  Remote Condensing Unit Ventilated Refrigeration  Off Cycle Defrost
 Large Surface  Medium Surface Speciality Store
 IV Gamma Pre-packed Fruit and Veg  Cheese Pre-packed Fish  Delicatessen Fresh Milk
 Meat  Salami

 Length With Ends  Horizontal Display Surface  Net Volume
 1290 mm  2,26 m²  434 dm³
 1915 mm  3,39 m²  650 dm³
 2540 mm  4,53 m²  867 dm³
 660 mm  1,12 m²  215 dm³
 980 mm  1,70 m²  325 dm³

 Dione Refrigerated Cabinets by Oscartielle

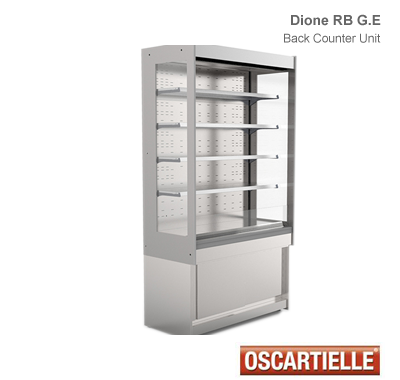

Dione RB G.E

Back Counter Unit
Ideal where space is limited

Working temperature
+2°C/+4°C
Normal Temperature Ventilated Refrigeration Off Cycle Defrost
 Medium Surface Small Surface Speciality Store
 IV Gamma Pre-packed Fruit and Veg Cheese Delicatessen Fresh Milk
 Salami

 Length With Ends  Horizontal Display Surface  Net Volume
 1290 mm  2,26 m²  434 dm³
 1915 mm  3,39 m²  650 dm³
 2540 mm  4,53 m²  867 dm³

 Dione Refrigerated Cabinets by Oscartielle

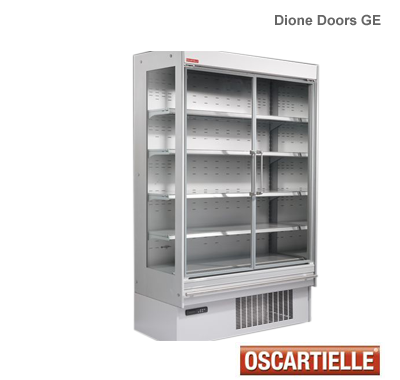

Dione Doors GE

Equipped with low-e glazing to reduce heat loss and increase energy savings.

Working temperature
0°C/+2°C
Normal Temperature Remote Condensing Unit Ventilated Refrigeration Off Cycle Defrost
Large Surface Medium Surface Speciality Store
 IV Gamma Pre-packed Fruit and Veg  Cheese Pre-packed Fish Delicatessen  Fresh Milk
 Meat  Salami

 Length With Ends  Horizontal Display Surface  Net Volume
 660 mm  1,12 m²  215 dm³
 980 mm  1,70 m²  325 dm³
 1290 mm  2,26 m²  434 dm³
1915 mm  3,39 m²  650 dm³
 2540 mm  4,53 m²  867 dm³

 Dione Refrigerated Cabinets by Oscartielle

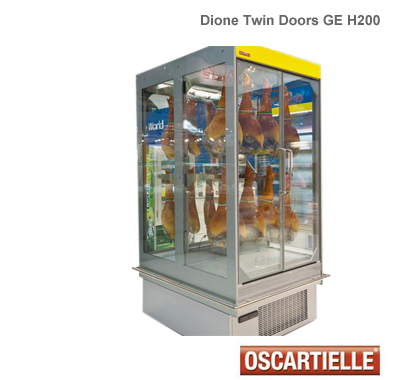

Dione Twin Doors GE H200

Equipped with low-e glazing to reduce heat loss and increase energy savings.

Working temperature
0°C/+2°C
Normal Temperature Remote Condensing Unit Ventilated Refrigeration Off Cycle Defrost
Small Surface Medium Surface Speciality Store
 IV Gamma Pre-packed Fruit and Veg  Cheese Pre-packed Fish Delicatessen  Fresh Milk
 Meat  Salami

 Length With Ends  Horizontal Display Surface  Net Volume
 977 mm  3,40 m²  430 dm³
